Basic timeline

3.1 Opening the timeline

Go to a mediaclip detail screen and press the timeline button at the bottom of the screen.

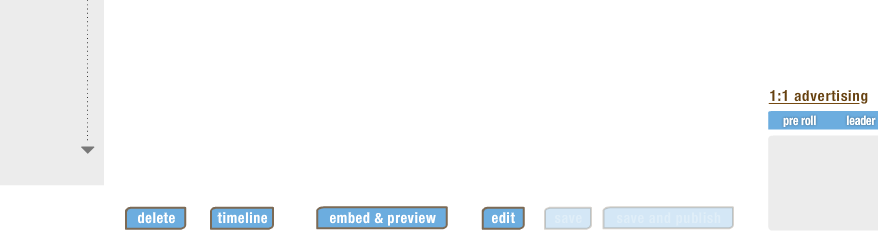

Mediaclip details

Figure 3.1 Mediaclip details

I>If the timeline button is not shown, it means that the user that's logged in does not have permission to use Timeline. In this case please contact the person responsible for usermanagement or support@bluebillywig.com and ask for the timeline permission.

Clicking the timeline button will open the timeline screen.

Timeline screen

Figure 3.2 Timeline screen

The timeline screen contains the following area's:

  1. A video screen (the Stage). Here the video-asset and all widgets will be visible.
  2. An information panel next to the video screen (will initially be empty)
  3. A timeline track

3.2 Creating a new widget

Creating a new widget will place the widget at the current time position of the video. There are 2 ways to create a new widget.

The first is clicking the  button and choosing a widget from the list.

The second way is to right-click on the stage area or the timeline area and choose a widget from the dropdown menu.

Note that there are special areas for action-only widgets and chapter widgets.

3.3 Configuring a widget

When you select a widget (or just created a new one), the widget (and event) information will be shown in the information panel at the top right area of the screen.

These are the basic steps to configure a widget:

  1. Give the widget a name by entering it in the label field.
  2. Use the configuration tabs to configure the properties and handlers of the widget.

! Though it's not mandatory to give a widget a label, it is recommended and important to do so, both for targeting using commands and identifying them in the statistics screen.

3.3.1 Selecting a mediaclip or creating a new one

Certain configuration fields let you select a mediaclip of a certain type. For example, an image widget lets you configure an image-clip to use. Instead of selecting a mediaclip you can create a new one from within the configuration field using the upload button. After the upload has completed the newly created clip will be automaticaly published and selected within the configuration field.

3.4 Changing a widget type

When a widget (or an event) has been selected and the configuration is shown in the information panel at the top-right area, the widget can be changed using the type dropdown box. Animation data is untouched when changing widget type. Eg: an animated rectangle will become an animated image.

3.5 Selecting widgets

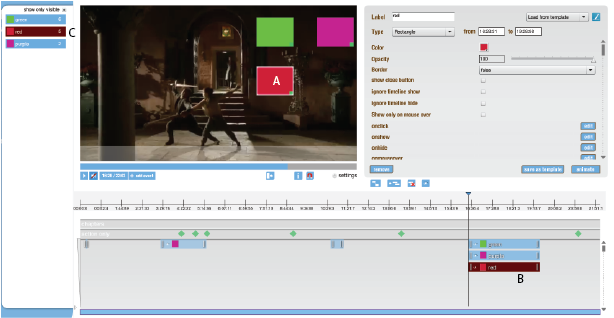

Selecting widgets

Figure 3.5 Selecting widgets

To select a widget you can do one of the following:

  1. Click on a widget on the Stage
  2. Click on an event (containing the widget) in the timeline track
  3. Click on the widget in the widget list panel

3.5.1 Selecting multiple widgets

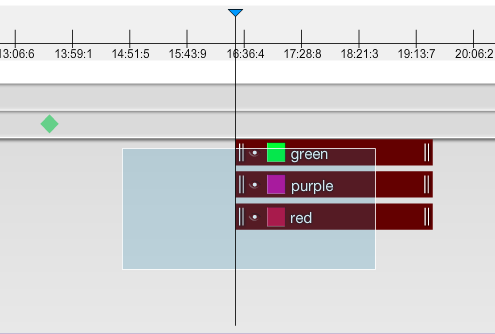

Select multiple widgets using the timeline area

Figure 3.6 Select multiple widgets using the timeline area

Click and drag a rectangle in the timeline track to select multiple widgets.

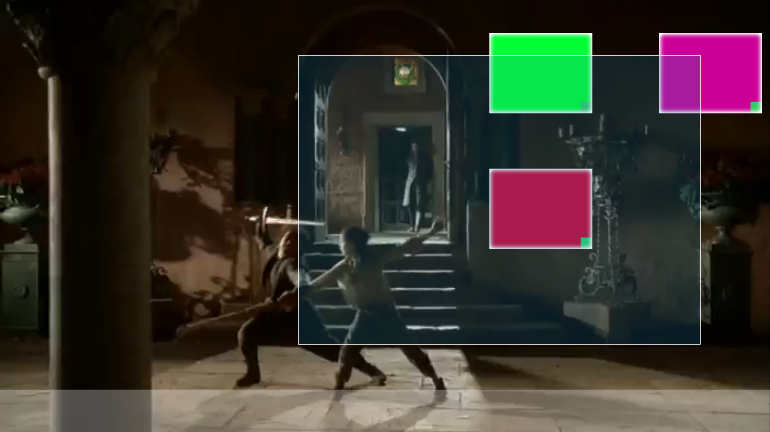

Select multiple widgets using the stage

Figure 3.7 Select multiple widgets using the stage

Click and drag a rectangle on the stage to select multiple widgets. On the stage and the timeline area use shift and click to add/remove widgets to/from the selection. Selections can be grouped for convenient targeting, see chapter Groups .

3.6 Removing widgets

Right click on the widget to remove and choose remove from the context menu. A different way to remove a widget is to select and press the remove button which is located in the bottom left of the configuration panel. You can also right-click on a widget on either the stage or the timeline and select remove from the context menu.
